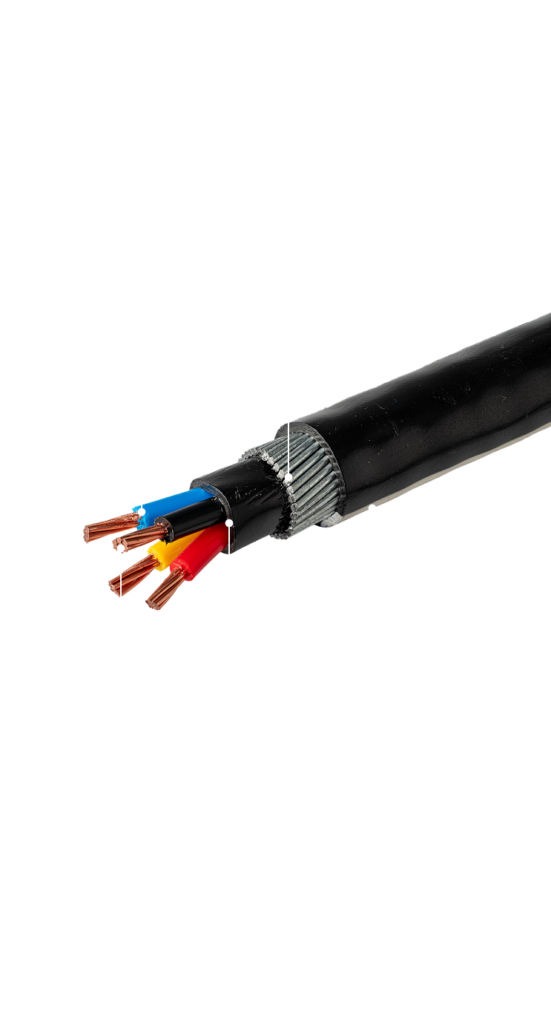

A high-specification power cable featuring Copper or Aluminium conductors and an outer jacket (often marked with a white stripe) that is entirely free of halogens to eliminate the emission of toxic, corrosive smoke during a fire.
Primary Uses
01 Emergency Unit
02 Fans for Extraction
03 Elevators
04 Critical Machines in Hospitals
Key Features
Copper – SANS 1507-3
Aluminium – SANS 1507
Voltage Rating
1,9kV / 3,3kV.
Flame Retardant
Properties of the PVC in the cable prevent the spread of fire.
Armouring
Galvanised Steel Wire Armour (SWA)
Conductor Material
Copper or Aluminium.
Sheath Colours
Black/White stripe.
Insulation & Bedding
This cable is XLPE or PVC-insulated, PVC-bedded, and PVC fire-retardant.
Available Cores
- 2, 3 and 4 cores
- 1,5mm2, 2,5mm2 cables area available in 7, 12, 19, 27 and 37 cores
- 4mm2 cables are available in 7, 12 and 19 cores
- 6mm2 cables are available in 7 cores
Sizes
- Bells: 1,5,mm2 – 16mm2.
- Mains: 25mm2 – 300mmm2.
