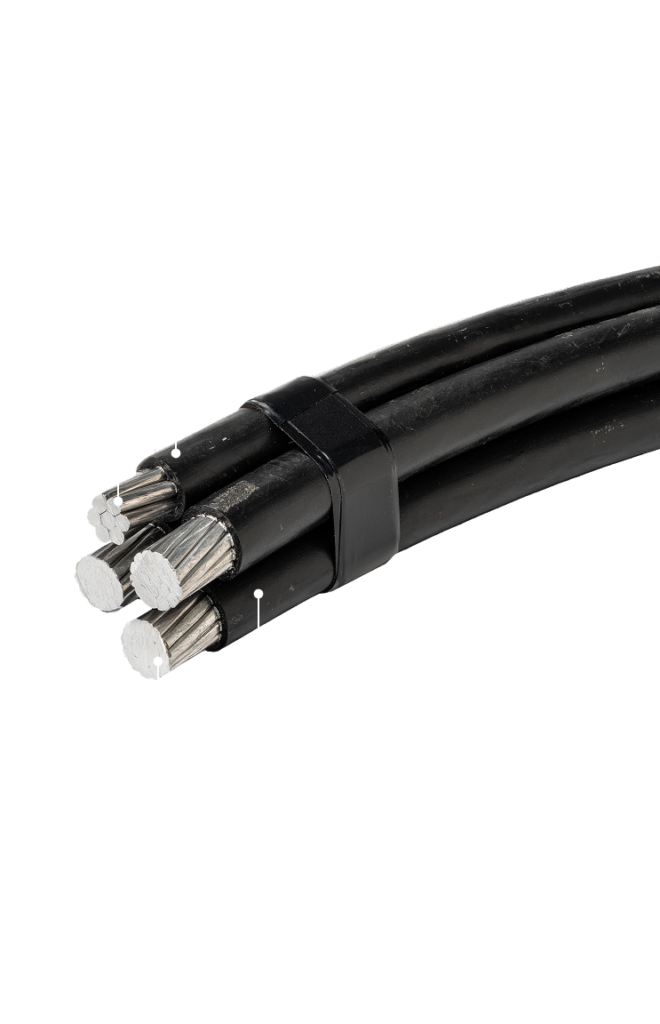

This range of LV Aerial Bundle Conductors (ABC) are designed to provide a comprehensive solution for low-voltage overhead power distribution (up to 1 kV). They consist of aluminium phase conductors insulated with XLPE • UV protection for outdoor exposure. Prefer insulated support configurations to reduce outages from contact with trees or other conductors. Use bare support systems for cost efficiency. Select larger cross-sections (95–150 mm²) to accommodate higher current demand.
(Cross-Linked Polyethylene), which provides:
• Enhanced mechanical strength for self-supporting applications.
• Improved safety compared to bare conductors, reducing theft and vandalism risks.Primary Uses
| Configuration | Description | Application |
|---|---|---|
| Single Core (Self-Supporting) | One insulated aluminium phase conductor. | Street lighting, single-phase lines. |
| Two Core + Bare Support + Auxiliary | Two insulated phase conductors plus bare support and optional 25mm² auxiliary core. | Small networks, rural distribution. |
| Two Core + Insulated Support | Two insulated phase conductors twisted around an insulated neutral. | Urban networks, higher safety zones. |
| Three Core + Bare Support | Three insulated phases with separate bare support conductor. | Eskom rural electrification. |
| Three Core + Insulated Neutral | Three insulated phases plus insulated neutral. | Urban and industrial networks. |
| Three Core + Insulated Neutral + Auxiliary | Three insulated phases, insulated neutral, plus auxiliary conductor. | Industrial/commercial distribution. |
| Three Core + Insulated Support + Auxiliary | Three insulated phases twisted around insulated support with auxiliary conductor. | Large complex installations |
Key Features
Insulation Material
Carbon-loaded XLPE provides UV stability and environmental protection.
Phase Identification
- Phases 1, 2, and 3 are indented for identification.
- Neutral core has specific rib markings for easy detection.
Temperature Range
It can safely operate in temperatures ranging from -10°C to +80°C.
Packaging
Supplied on 500 m wooden drums for ease of transport and installation.
Durability
UV-protected insulation with robust mechanical properties.
Versatility
Multiple configurations to match urban, rural, and industrial requirements.
Standards Compliance
Fully compliant with SANS 1418 and Eskom-specific designs.
Optimised Sizes
16 mm² to 150 mm² for varied load and distance needs.
