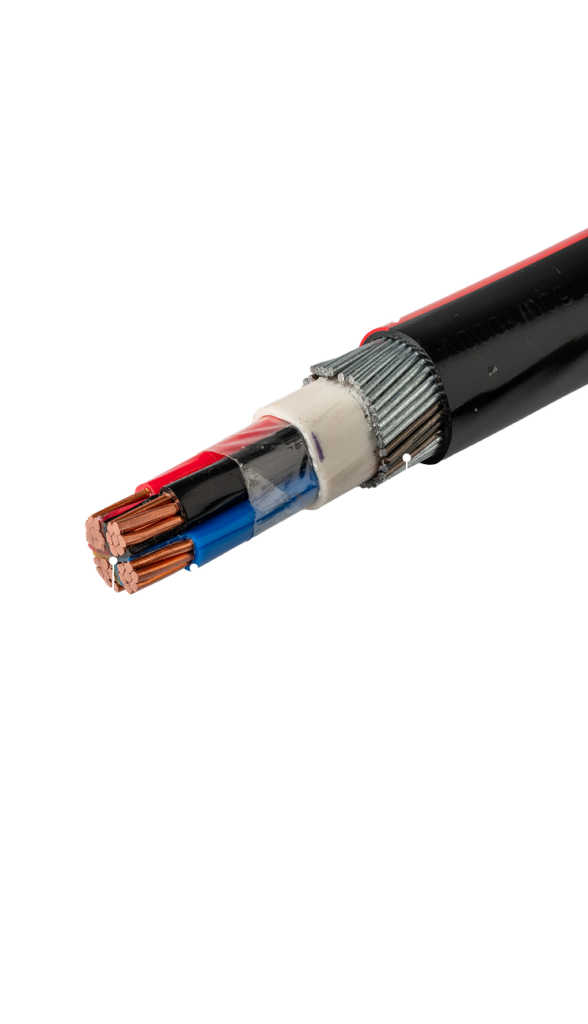

This low voltage power cable features copper conductors and is primarily designed with a flame-retardant jacket (often identified by the red stripe) to ensure superior fire safety in general power distribution applications. It will only burn while there is a fire source but self-extinguishes when the source is removed.
Primary Uses
01 General Power Distribution
02 Direct Burial Installations
Key Features
Copper – SANS 1507-3
Aluminium – SANS 1507
Voltage Rating
1,9kV / 3,3kV.
Flame Retardant
Properties of the PVC in the cable prevent the spread of fire.
Armouring
Galvanised Steel Wire Armour (SWA)
Conductor Material
Copper or Aluminium.
Sheath Colours
Black/red stripe.
Insulation & Bedding
This cable is XLPE or PVC-insulated, PVC-bedded, and PVC fire-retardant.
Available Cores
- 2, 3 and 4 cores
- 1,5mm2, 2,5mm2 cables area available in 7, 12, 19, 27 and 37 cores
- 4mm2 cables are available in 7, 12 and 19 cores
- 6mm2 cables are available in 7 cores
Sizes
- Bells: 1,5,mm2 – 16mm2
- Mains: 25mm2 – 300mmm2
