This is a power cable with flame-retardant properties (identified by the red or brown stripe) designed to inhibit the spread of fire, and it includes a dedicated, built-in Earth Continuity Conductor (ECC) to ensure reliable grounding and enhanced electrical safety. This product can be manufactured as Low Halogen (LH) or Halogen Free.
Primary Uses
01 General Power Distribution
02 Direct Burial Installations
03 Earth Continuity Path
Key Features
Copper – SANS 1507-3
Aluminium – SANS 1507
Voltage Rating
1,9kV / 3,3kV.
Flame Retardant
Properties of the PVC in the cable prevent the spread of fire.

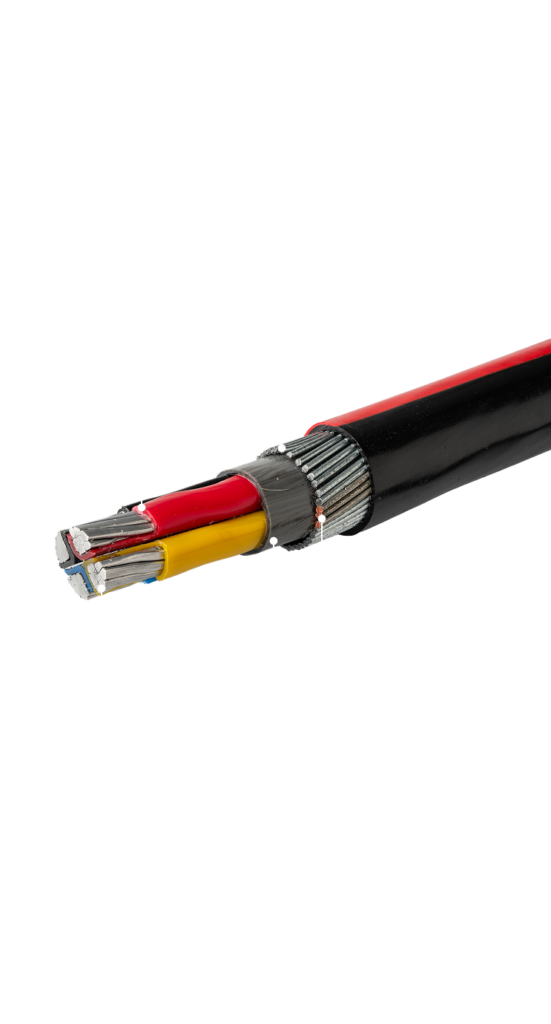

Armouring
Galvanised Steel Wire Armour (SWA) with earth continuity conductors
Conductor Material
Copper or Aluminium.
Sheath Colours
Black / Red Stripe or Black / Brown Stripe.
Insulation & Bedding
This cable is XLPE or PVC-insulated, PVC-bedded, and PVC fire-retardant.
Available Cores
- 2, 3 and 4 cores
- 1,5mm2, 2,5mm2 cables area available in 7, 12, 19, 27 and 37 cores
- 4mm2 cables are available in 7, 12 and 19 cores
- 6mm2 cables are available in 7 cores
Sizes
- Bells: 1,5,mm2 – 16mm2.
- Mains: 25mm2 – 300mmm2.
